ELIX / Press-Fit LED Strip Connectors

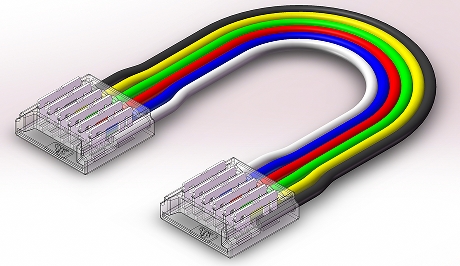

S-SMD-6PIN-12MM-C

ELIX LED strip connector for 6-pin 12 mm SMD projects, covering strip-to-strip layouts without on-site soldering. It helps installers connect faster, reduce rework, keep the light channel cleaner and confirm the exact model before buying samples. Rating reference: 4A.

Series: ELIX
Category: Press-Fit LED Strip Connectors
Family: Mini
Model: S-SMD-6PIN-12MM-C
Pins / positions: 6
Strip width: 12 mm
LED type: SMD
Application / protection: IP20
Connection: Strip-to-strip
Compatible strip: SMD LED strips
Maximum current: 4A
Recommended wire: 22 AWG
Lead length: 15cm
Rated voltage: 5V / 9V / 12V / 18V / 24V / 36V / 48V
Withstand voltage: 500V
Temperature resistance: 105°C
Working temperature: -20°C to +105°C
Allowable humidity: 15%-90%
Salt spray test: Neutral salt spray, 24 h
Rated current: 4A
Wire range: 22 AWG

Before you request samples

S-SMD-6PIN-12MM-C belongs to the ELIX solderless LED strip connector route. Use it to reduce soldering work, speed up installation and keep COB or SMD strip connections cleaner. Share the strip type, connection route, quantity and destination market if available, so VEXIRA can check fit, sample route, packing and delivery options.

01 / LABOR

Reduce site work

Confirm the connector against the real strip, conductor, PCB layout or enclosure before purchase. The right model saves installation time and avoids avoidable rework.

02 / FINISH

Keep the connection clean

Use samples to check handling, installation space, wiring appearance, marking and packing before placing a larger order.

03 / SUPPLY

Plan documents and delivery

Send quantity, destination market and certificate requirement. VEXIRA can review available documents and practical freight or DDP options for selected markets.
